Product Summary

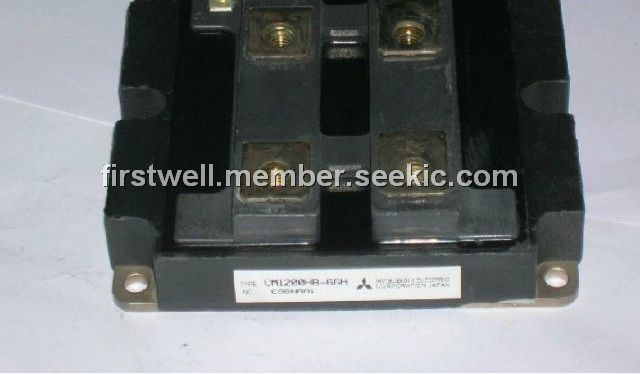

The CM1200HB-66H is an IGBT module. Its applications include inverters, converters, dc choppers, induction heating, dc to dc converters.
Parametrics
CM1200HB-66H absolute maximum ratings: (1)VCES, collector-emitter voltage: 3300V; (2)VGES, gate-emitter voltage: ±20V; (3)ic, collector current: 1200A; (4)ie, emitter current: 1200A; (5)pc, maximum collector dissipation: 15630W.
Features
CM1200HB-66H features: (1)IC: 1200A; (2)VCES: 3300V; (3)insulated type; (3)1-element in a pack.

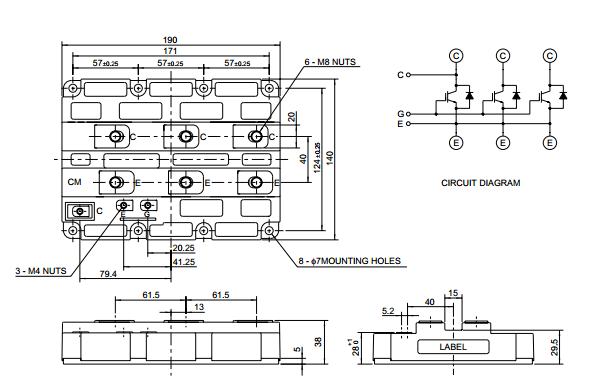

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM1200HB-66H |
Other |
|
Data Sheet |
Negotiable |
|
||||
