Product Summary

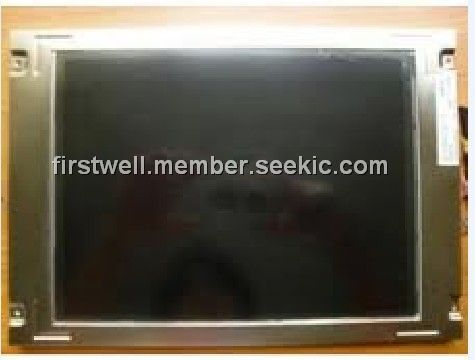

The NL160120BC27-14 is a 21.3 inch panel for monitor applications.

Parametrics

NL160120BC27-14 absolute maximum ratings: (1)Power supply voltage: 12.0V; (2)Power consumption: 30.7W; (3)Operating temperature: 0 ℃ to +55 ℃; (4)Storage temperature: -20 ℃ to +60 ℃.

Features

NL160120BC27-14 features: (1)Screen size: 21.3 inch (54cm diagonal); (2)Interface: 2 port LVDS (RGB 8 bits each); (3)Resolution: 1600(H) x 1200(V) pixels; (4)Display area: 432.0(H) x 324.0(V) mm; (5)Drive system: a-Si TFT active-matrix; (6)Display color: 16.77M colors; (7)Pixel arrangement: RGB vertical stripe; (8)Polarizer surface: Antiglare; (9)Pixel pitch: 0.27(H) x 0.27(V) mm; (10)Module size: 457.0(W) x 350.0(H) x 25.5 max.(D) mm; (11)Luminance: 250cd/m2; (12)Weight: 3750g; (13)Contrast ratio: 550:1 ; (14)Backlight: Top and bottom, 3 CCFLs each; (15)Viewing angle: Up: 88°, down: 88°, left: 88°, right:88°; (16)Inverter: Not provided; (17)Response time: 20ms.
