Product Summary
The PMT809004 is a GDT circuit protection device. The PMT809004 dissipates electrical surge energy safely within a contained plasma gas. Commonly used to help protect sensitive telecom and networking equipment and lines, GDTs protect from damage that may result from lightning strikes and equipment switching operations. The applications of the PMT809004 include Telecom network interfaces, Telephone line cards, Repeaters, Modems and Line test equipment.
Parametrics
PMT809004 absolute maximum ratings: (1)Glow to arc transition current: 1Amp; (2)Glow Voltage: 60-200 Volts; (3)Storage and Operation Temperature: -40 to +90℃; (4)Transverse Voltage (Delay Time): < 0.2μSec (Tested to ITU-T Rec. K.12); (5)Arc Voltage: 10 to 35 Volts; (6)Holdover Voltage: <150mS.
Features
PMT809004 features: (1)RoHS compliant; (2)Low insertion loss; (3)Excellent response to fast rising transients; (4)Ultra low capacitance; (5)10KA (A suf?x devices)/ 20KA surge capability tested with 8/20μs pulse as defined by IEC 61000-4-5 ; (6)Available with thermal failsafe option.

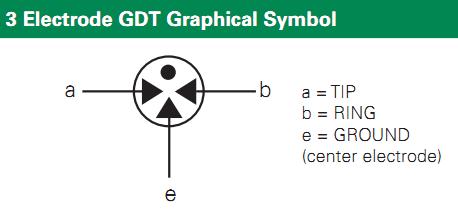

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PMT809004 |
Littelfuse |
Gas Discharge Tubes (GDTs) / Gas Plasma Arrestors THREE ELEMENTS 90V |
Data Sheet |
|
|
||||||||||||
|
PMT809004F |
Littelfuse |
Gas Discharge Tubes (GDTs) / Gas Plasma Arrestors GP 3 EL. S.A. 90V |
Data Sheet |
|
|
||||||||||||
