Product Summary
The TD180N16KOF is a phase control thyristor module.
Parametrics
TD180N16KOF absolute maximum ratings: (1)repetitive peak forward off-state and reverse voltages: 1400V; (2)non-repetitive peak forward off-state voltage: 1400V; (3)non-repetitive peak reverse voltage: 1500V; (4)maximum RMS on-state current: 285A; (5)average on-state current: 180A.
Features
TD180N16KOF features: (1)On-state voltage: 141V; (2)threshold voltage: 0.85V; (3)slope resistance: 0.9mΩ; (4)gate trigger current: 150mA; (5)gate trigger voltage: 2V; (6)gate non-trigger current: 10mA.

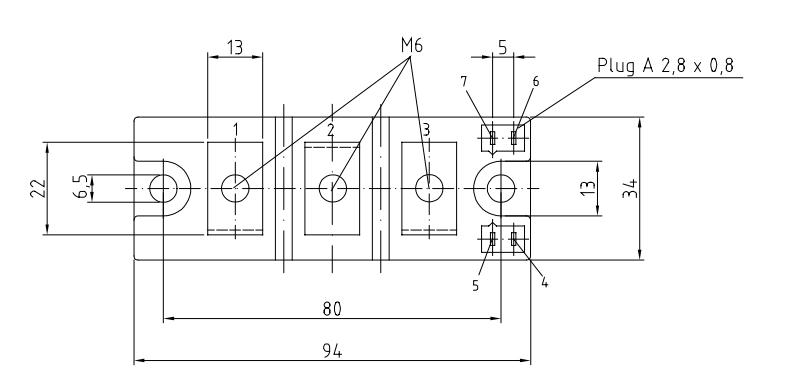

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TD180N16KOF |
Infineon Technologies |
SCR Modules 1.6KV 4.8KA |
Data Sheet |
|
|
||||||||
