Product Summary

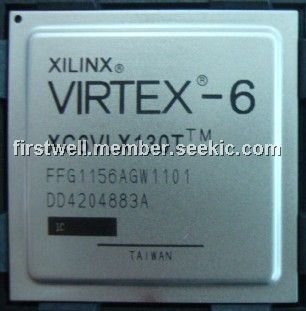

The XC6VLX130T-1FFG1156C is a Virtex-6 FPGA. It is specified for both commercial and industrial grades.
Parametrics
XC6VLX130T-1FFG1156C absolute maximum ratings: (1)Internal supply voltage relative to GND:–0.5V to 1.1V; (2)For -1L devices: Internal supply voltage relative to GND:–0.5V to 1.0V; (3)Auxiliary supply voltage relative to GND:–0.5V to 3.0V; (4)Output drivers supply voltage relative to GND:–0.5V to 3.0V; (5)Key memory battery backup supply:–0.5V to 3.0V; (6)External voltage supply for eFUSE programming:–0.5V to 3.0V; (7)Input reference voltage:–0.5V to 3.0V; (8)2.5V or below I/O input voltage relative to GND (user and dedicated I/Os):–0.5V to VCCO +0.5V; (9)Voltage applied to 3-state 2.5V or below output(user and dedicated I/Os):–0.5V to VCCO +0.5V; (10)Storage temperature (ambient):–65℃ to 150℃; (11)Maximum soldering temperature:+220℃; (12)Maximum junction temperature:+125℃.
Features
XC6VLX130T-1FFG1156C features: (1)Data retention VCCINT voltage (below which configuration data might be lost):0.75V; (2)Data retention VCCAUX voltage (below which configuration data might be lost):2.0V; (3)VREF leakage current per pin:10μA; (4)Input or output leakage current per pin (sample-tested):10μA; (5)Data retention VCCINT voltage (below which configuration data might be lost):0.75V; (6)Data retention VCCAUX voltage (below which configuration data might be lost):2.0V; (7)VREF leakage current per pin:10μA; (8)Input or output leakage current per pin (sample-tested):10μA.

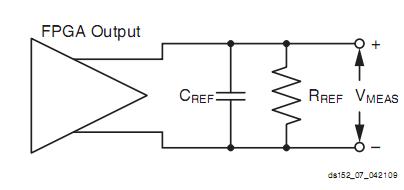

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XC6VLX130T-1FFG1156C |
|
IC FPGA VIRTEX 6 128K 1156FFGBGA |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
XC6VCX130T-1FFG1156C |
|
IC FPGA VIRTEX 6 128K 1156FFGBGA |
Data Sheet |
|
|
||||||
|
XC6VCX130T-1FFG1156I |
|
IC FPGA VIRTEX 6 128K 1156FFGBGA |
Data Sheet |
|
|
||||||
 |
XC6VCX130T-1FFG484C |
|
IC FPGA VIRTEX 6 128K 484FFGBGA |
Data Sheet |
|
|
||||||
|
XC6VCX130T-1FFG484I |
|
IC FPGA VIRTEX 6 128K 484FFGBGA |
Data Sheet |
|
|
||||||
|
XC6VCX130T-1FFG784C |
|
IC FPGA VIRTEX 6 128K 784FFGBGA |
Data Sheet |
|
|
||||||
|
XC6VCX130T-1FFG784I |
|
IC FPGA VIRTEX 6 128K 784FFGBGA |
Data Sheet |
|
|
||||||
