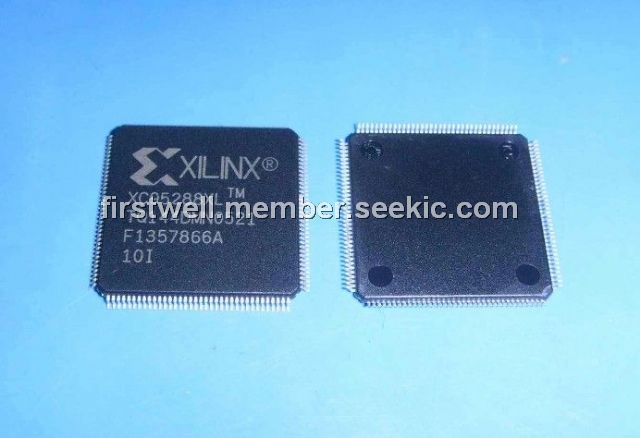

XC95288XL-10TQ144I

High-Performance CPLD, 144TQFP, 3.3V, 208 MHz, XC95288XL-10TQ144I

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~3.00

PartNumber:: XC95288XL-10TQ144I

Brand:: Xilinx, Inc - Xilinx | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. robert's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-17

From Other Seller

Part Number:XC95288XL-10TQ144I
US $2.00 - 3.00
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The XC95288XL-10TQ144I is a High-Performance CPLD. The XC95288XL-10TQ144I is targeted for high-performance, low-voltage applications in leading-edge communications and computing systems, where high device reliability and low power dissipation is important. The XC95288XL-10TQ144I architectural features address the requirements of in-system programmability. Enhanced pin-locking capability avoids costly board rework. In-system programming throughout the full commercial operating range and a high programming endurance rating provide worry-free reconfigurations of system field upgrades. Extended data retention supports longer and more reliable system operating life.

Parametrics

XC95288XL-10TQ144I absolute maximum ratings: (1)VCC, Supply voltage relative to GND: –0.5 to 4.0 V; (2)VIN, Input voltage relative to GND: –0.5 to 5.5 V; (3)VTS, Voltage applied to 3-state output: –0.5 to 5.5 V; (4)TSTG, Storage temperature (ambient): –65 to +150℃; (5)TSO,L Maximum soldering temperature (10s @ 1/16 in. = 1.5 mm): +260℃; (6)TJ, Junction temperature: +150℃.

Features

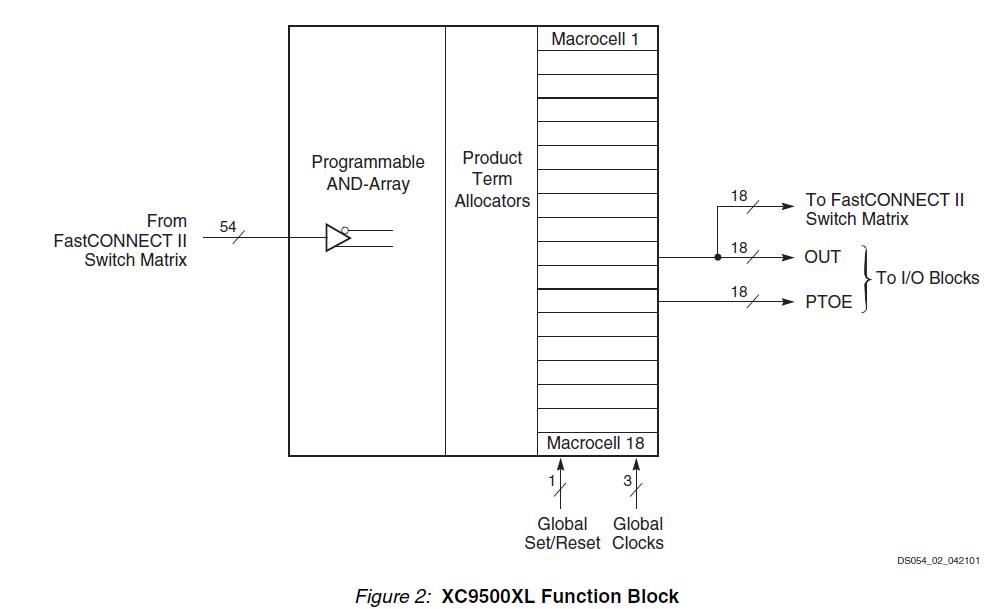

XC95288XL-10TQ144I features: (1)5 ns pin-to-pin logic delays, with internal system frequency up to 208 MHz; (2)Small footprint packages including VQFPs, TQFPs and CSPs (Chip Scale Package); (3)Pb-free available for all packages; (4)Lower power operation; (5)5V tolerant I/O pins accept 5V, 3.3V, and 2.5V signals; (6)3.3V or 2.5V output capability; (7)Advanced 0.35 micron feature size CMOS FastFLASH technology; (8)In-system programmable; (9)Superior pin-locking and routability with FastCONNECT II. switch matrix; (10)Extra wide 54-input Function Blocks; (11)Up to 90 product-terms per macrocell with individual product-term allocation.
