Product Summary

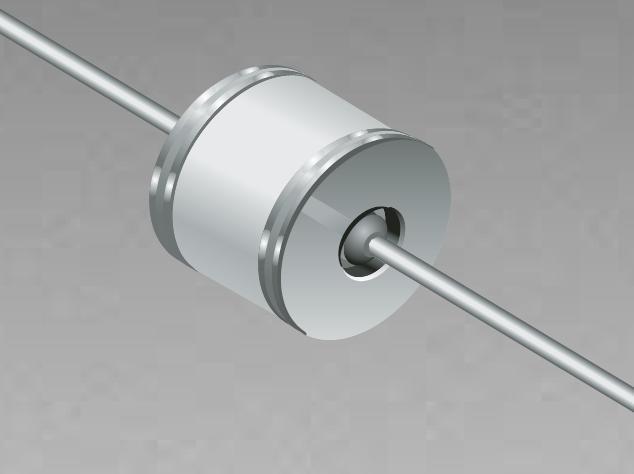

The 2035-09-BT1LF is a gas discharge tube. The applications of the device include: (1)Telecommunications; (2)Industrial electronics; (3)Commercial electronics; (4)Consumer electronics; (5)Automotive, aircraft, military electronics.
Parametrics
2035-09-BT1LF maximum ratings: (1)Insulation Resistance (IR): 100 V (50 V for Models 2035/2037-09), > 1010 Ω; (2)Glow Voltage: 10 mA, ~ 70 V; (3)Arc Voltage: 1 A, ~ 10 V; (4)Glow-Arc Transition Current: < 0.5 A; (5)Capacitance: 1 MHz, < 1 pF; (6)DC Holdover Voltage: 135 V, (52 V for Models 2035/2037-09, < 150 ms; 80 V for Models 2035/2037-15); (7)Impulse Discharge Current: 10000 A, 8/20 μs2, 1 operation min; 5000 A, 8/20 μs , > 10 operations; 1000 A, 10/350 μs, 1 operation; 100 A, 10/1000 μs , > 300 operations; 100 A, 10/700 μs, > 500 operations; (8)Alternating Discharge Current: 20 Arms, 11 cycles2, 1 operation min; 5 Arms, 1 s, > 10 operations Operating Temperature: -55 to +85 ℃; (9)Climatic Category (IEC 60068-1): 40/90/21.
Features
2035-09-BT1LF features: (1)5 mm diameter, 4 mm long (2035 series); (2)5 mm diameter, 5 mm long (2037 series); (3)UL Recognized; (4)High surge current rating; (5)Stable breakdown throughout life; (6)RoHS compliant* versions available.

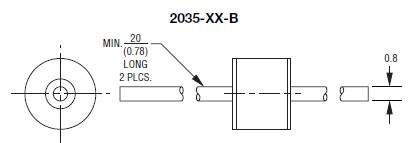

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2035-09-BT1LF |
Bourns |
Gas Discharge Tubes (GDTs) / Gas Plasma Arrestors GAS DISCHARGE TUBE MINI 2POLE 90VOLT |
Data Sheet |
|
|
||||||||||||
