Product Summary

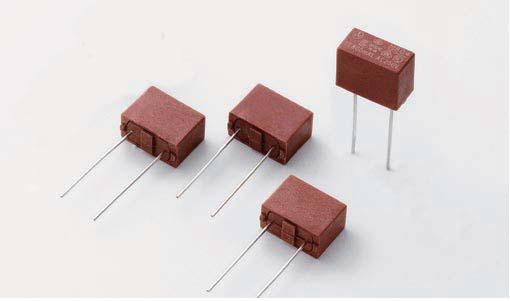

The 80408000000 is a TE UMF, TT time lag type subminiature fuse designed for overcurrent protection. It is 250V rated and designed in accordance to IEC 60127-4. The applications of the 80408000000 include battery charger, power supplies, consumer electronics and industrial controllers.

Parametrics

80408000000 absolute maximum ratings: (1)Ampere Rating: 0.8 A; (2)VAC: 250V; (3)Package Size, TE7: 12.4x9.2x6.4mm ; (4)Nominal Melting, I2T: 12A2sec; (5)Nominal Cold Resistance: 0.1887Ohms; (6)Nominal Voltage Drop: 218mV; (7)Nominal Power Dissipation: 332w; (8)Operating Temperature: -40 to + 125℃.

Features

80408000000 features: (1)lead-free and RoHS compliant; (2)reduced PCB space requirements; (3)direct solderable or plug-in versions; (4)low internal resistance; (5)internally approved; (6)shock safe casingvibration resistant; (7)Halogen free.

Diagrams

80408000000 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
80408000000
80408000000
Littelfuse
Fuses 250V IEC TL LL 800mA TE7
Data Sheet
0-1: $1.05
1-10: $1.00
10-100: $0.94
100-250: $0.90
