Product Summary
The BSM100GB120DLC is an IGBT module.
Parametrics
BSM100GB120DLC absolute maximum ratings: (1)collector-emitter voltage: 1200V; (2)dc-collector current: 100A; (3)repetitive peak collector current: 200A; (4)total power dissipation: 780W; (5)gate-emitter peak voltage: ±20V.
Features
BSM100GB120DLC features: (1)collector-emitter saturation voltage: 290V; (2)gate threshold voltage: 65V; (3)gate charge: 110μC; (4)internal gate resistor: 25Ω; (5)input capacitance: 650nF.

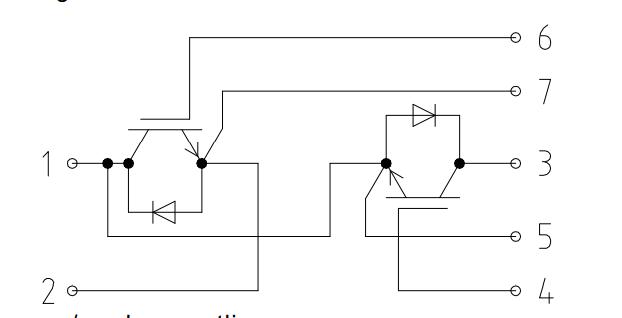

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BSM100GB120DLC |
Infineon Technologies |
IGBT Modules 1200V 100A DUAL |
Data Sheet |
|
|
||||||||||||
|
BSM100GB120DLCK |
Infineon Technologies |
IGBT Modules 1200V 100A DUAL |
Data Sheet |
|
|
||||||||||||
