Product Summary

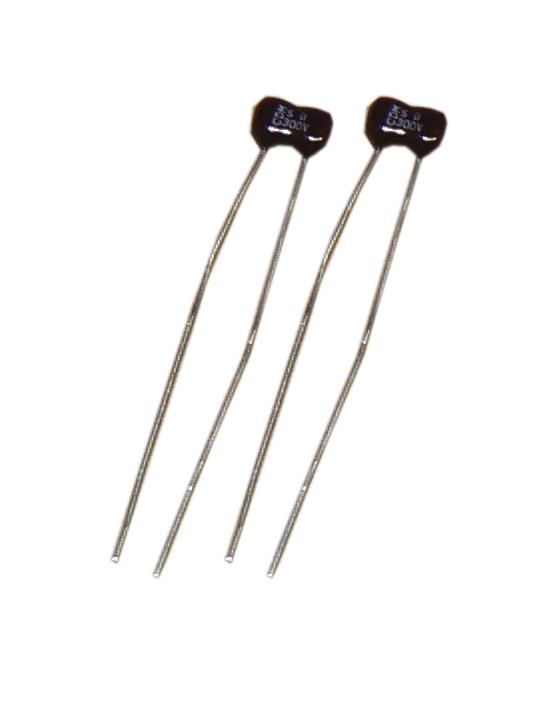

The CD5CC010DO3F is a CDE miniature dipped silver mical capacitor. Small cases for tight places is what you get with the device. Like the standard dipped mica capacitor, the CD5CC010DO3F offers the same stability and rugged performance in low and moderate-humidity applications.

Parametrics

CD5CC010DO3F absolute maximum ratings: (1)Capacitance Range: 1 pF to 40,000 pF; (2)Voltage Range: 50 Vdc to 500 Vdc; (3)Capacitance Tolerance: ±1/2 pF (D), ±1 pF (C), ±1/2% (E), ±1% (F), ±2% (G), ±5% (J); (4)Temperature Range:–55 to +125℃; (5)Dielectric Strength Test: 200% of rated voltage.

Features

CD5CC010DO3F features: (1)Reel packaging available; (2)Dimensions meet EIA RS153B specification; (3)20,000 V/μs dV/dt pulse capability minimum; (4)Non-flammable units that meet IEC 695-2-2 are available.

Diagrams

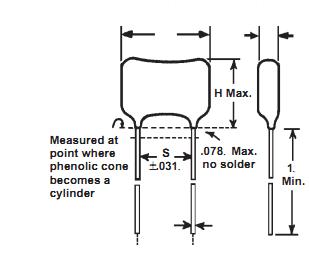

CD5CC010DO3F dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CD5CC010DO3F
CD5CC010DO3F
Cornell Dubilier
Mica Capacitors 1pF 300V +/-0.5pF
Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CD5CC010DO3F
CD5CC010DO3F
Cornell Dubilier
Mica Capacitors 1pF 300V +/-0.5pF
Data Sheet
Negotiable
CD5CC020DO3
CD5CC020DO3
Cornell Dubilier
Mica Capacitors MICA 2PF300VD
Data Sheet
0-1: $1.69
1-25: $1.43
25-100: $0.92
100-500: $0.85
CD5CC030CO3F
CD5CC030CO3F
Cornell Dubilier
Mica Capacitors 3pF 300V +/- 1pF
Data Sheet
0-1: $1.26
1-25: $1.07
25-100: $0.69
100-500: $0.62
CD5CC070DO3F
CD5CC070DO3F
Cornell Dubilier
Mica Capacitors 7pF 300V +/-0.5pF
Data Sheet
0-1: $1.49
1-25: $1.26
25-100: $0.80
100-500: $0.73
CD5CC060CO3F
CD5CC060CO3F
Cornell Dubilier
Mica Capacitors 6pF 300V +/- 1pF
Data Sheet
0-1: $1.53
1-25: $1.30
25-100: $0.83
100-500: $0.75
CD5CC050CO3F
CD5CC050CO3F
Cornell Dubilier
Mica Capacitors 5pF 300V +/- 1pF
Data Sheet
0-1: $1.26
1-25: $1.07
25-100: $0.69
100-500: $0.62
