Product Summary

The CG2350L is a highly reliable GDT. It can provide a high degree of surge protection in a small size ideal for board level circuit protection. The CG2350L is ideal for protection of testand communication equipment and other devices which low voltage limits and extremely low arc voltages are required. The applications of the CG2350L include communication lines and equipment, CATV equipemtn, test equipment, data lines, power supplies, instrumentation circuits, medical electronics, ADSL equipment and telecom SLIC protection.

Parametrics

CG2350L absolute maximum ratings: (1)Peak Pulse Current: 20 A; (2)DC Breakover Voltage (Nominal): 350 V; (3)Dimensions: 8.1 mm D x 6.07 mm L; (4)Mounting Style: Through Hole; (5)Technology: Gas Plasma Arrester; (6)Voltage Rating: 350 V .

Features

CG2350L features: (1)rugged ceramic-metal construction; (2)low capacitance; (3)meets REA PE-80; (4)available in surface mount, and a variety of lead options options.

Diagrams

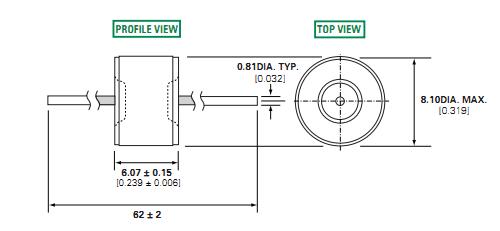

CG2350L dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CG2350L
CG2350L
Littelfuse
Gas Discharge Tubes (GDTs) / Gas Plasma Arrestors STANDARD 350V NOM
Data Sheet
0-1: $1.45
1-10: $1.32
10-100: $1.12
100-250: $0.99
CG2350LS
CG2350LS
Littelfuse
Gas Discharge Tubes (GDTs) / Gas Plasma Arrestors GP S.A. STANDARD 350V NOMINAL SMT
Data Sheet
0-290: $1.13
290-500: $1.01
500-1000: $0.91
1000-2000: $0.86
CG2350LSN
CG2350LSN
Littelfuse
Gas Discharge Tubes (GDTs) / Gas Plasma Arrestors GP S.A. STAN. 350V
Data Sheet
0-1: $1.45
1-10: $1.32
10-100: $1.12
100-250: $0.99
CG2350LSTR
CG2350LSTR
Littelfuse
Gas Discharge Tubes (GDTs) / Gas Plasma Arrestors GP S.A. STAN. 350V
Data Sheet
0-500: $1.01
500-640: $1.01
640-1000: $0.91
1000-2000: $0.86
CG2350LSNTE
CG2350LSNTE
Littelfuse
Gas Discharge Tubes (GDTs) / Gas Plasma Arrestors GP S.A. 350V 20% TOLERANCE
Data Sheet
0-500: $0.94
500-630: $0.94
630-1000: $0.85
1000-2000: $0.80
CG2350LSNTR
CG2350LSNTR
Littelfuse
Gas Discharge Tubes (GDTs) / Gas Plasma Arrestors GP S.A. STAN. 350V
Data Sheet
0-500: $0.94
500-630: $0.94
630-1000: $0.85
1000-2000: $0.80
CG2350LTR
CG2350LTR
Littelfuse
Gas Discharge Tubes (GDTs) / Gas Plasma Arrestors GP S.A. STAN. 350V
Data Sheet
0-1: $1.23
1-10: $1.18
10-100: $1.12
100-250: $1.06
250-500: $0.94
