Product Summary

The FS450R17KE3 is an IGBT module.

Parametrics

FS450R17KE3 absolue maximum ratings: (1)collector-emitter voltage: 1700V; (2)DC-collector current: 450A; (3)repetitve peak collector current: 900A; (4)total power dissipation: 2250W; (5)gate-emitter peak voltage: ±20V.

Features

FS450R17KE3 features: (1)gate threshold voltage: 6.4V; (2)gate charge: 510μC; (3)internal gate resistor: 1.7Ω; (4)input capacitance: 40.5nF; (5)collector-emitter cut-off current: 3mA.

Diagrams

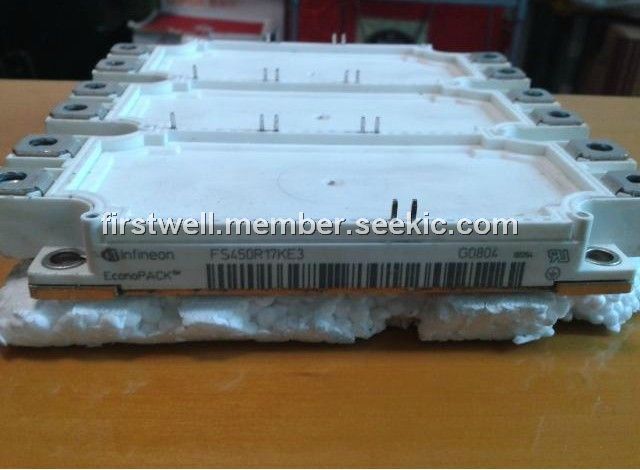

FS450R17KE3 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FS450R17KE3
FS450R17KE3
Infineon Technologies
IGBT Modules 1700V 450A 3-PHASE
Data Sheet
0-2: $649.91
2-10: $584.92
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FS450R12KE3
FS450R12KE3
Infineon Technologies
IGBT Modules 1200V 450A 3-PHASE
Data Sheet
0-1: $517.89
1-10: $466.03
FS450R12KE4
FS450R12KE4
Infineon Technologies
Discrete Semiconductor Modules 1200V 450A IGBT4
Data Sheet
0-2: $472.07
2-10: $422.79
FS450R17KE3
FS450R17KE3
Infineon Technologies
IGBT Modules 1700V 450A 3-PHASE
Data Sheet
0-2: $649.91
2-10: $584.92
FS450R17KE4
FS450R17KE4
Infineon Technologies
IGBT Modules IGBT 1700V 450A
Data Sheet
0-3: $582.00
3-10: $525.00
