ST62E25CF1

8-bit OTP/EPROM MCU, CDIP, 3.0V to 6.0V, 8MHz, ST62E25CF1

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.50~7.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.50~7.00

PartNumber:: ST62E25CF1

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 01+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. robert's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-31

From Other Seller

Part Number:ST62E25CF1
US $6.50 - 7.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

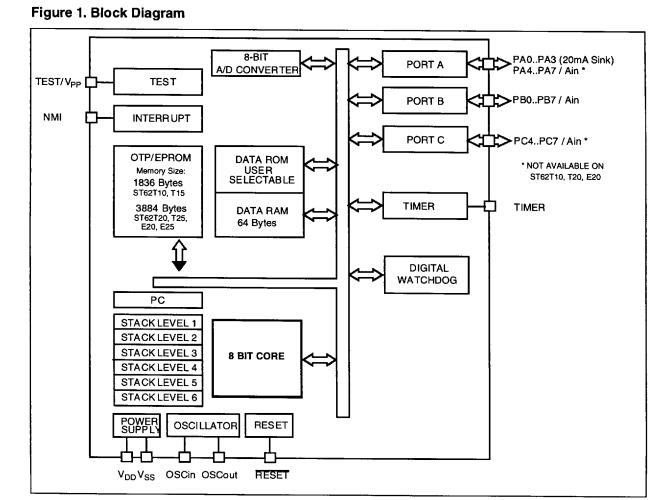

The ST62E25CF1 is an 8-bit OTP/EPROM MCU. It is targeted at low to medium complexity applications. The ST62E25CF1 is based on a building block approachL a common core is surrounded by a number of on-chip peripherals.The ST62E25CF1 features a timer comprising an 8-bit counter and a 7-bit programmable prescaler, an 8-bit A/D converter with 8-16 analog inputs and a digital watchdog timer, making it well suited for a wide range of automotive, appliance and industrial applications.

Parametrics

ST62E25CF1 absolute maximum ratings: (1)supply voltage:-0.3V to 7.0V; (2)input voltage: VSS-0.3V to VDD+0.3V; (3)output voltage: VSS-0.3V to VDD+0.3V; (4)OTP/EPROM programming voltage:13V; (5)current drain per pin excluding VDD, VSS:10mA; (6)total current into VDD:50mA; (7)total current out of VSS:50mA; (8)junction temperature:150℃; (9)storage temperature:-60℃ to 150℃.

Features

ST62E25CF1 features: (1)3.0V to 6.0V supply operating range; (2)8MHz maximum clock frequency; (3)-40 to +85℃ operating temperature range; (4)run, wait and stop modes; (5)5 interrupt vectors; (6)look-up table capability in OTP/EPROM; (7)data OTP/EPROM:user selectable size; (8)4 I/O lines can sink up to 20mA to drive LEDs or TRIACs directly; (9)8-bit timer with 7-bit programmable prescaler and external input; (10)digital watchdog; (11)on-chip clock oscillator can be driven by quartz crvstal or ceramic resonator; (12)power-on reset; (13)one external non-maskable interrupt.
