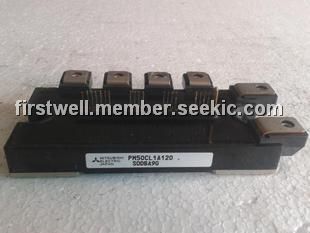

The PM50CL1A120 is an intelligent power module. Its applications include general purpose inverter, servo drive and other motor controls.
Parametrics
PM50CL1A120 absolute maximum ratings: (1)VCES: 1200v; (2)ic: 50A; (3)ICP: 100A; (4)PC: 462w; (5)Tj: -20 to 150℃.
Features
PM50CL1A120 features: (1)Adopting new 5th generation Full-Gate CSTBT chip; (2)The over-temperature protection which detects the chip surface temperature of CSTBT is adopted; (3)Error output signal is possible from all each protection upper and lower arm of IPM; (4)Compatible L-series package.

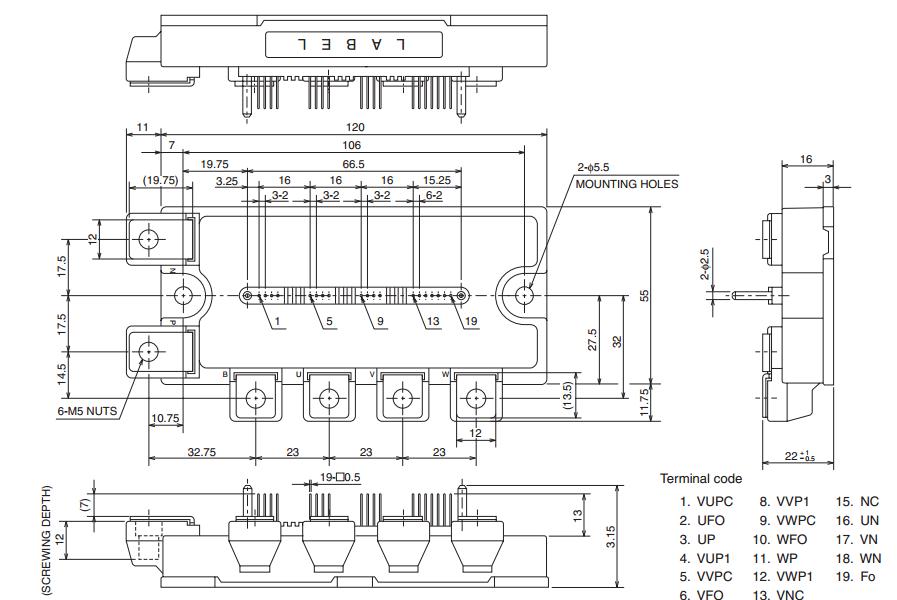

Diagrams
