Product Summary

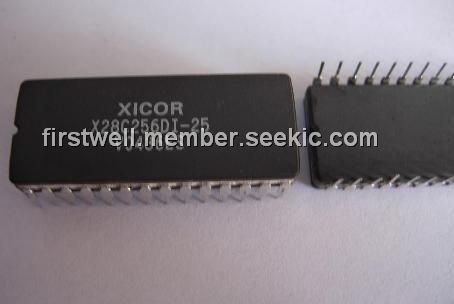

The X28C256DI-25 is a 32K x 8 E2PROM, fabricated with Xicor proprietary, high performance, floating gate CMOS technology. Like all Xicor programmable nonvolatile memories the X28C256DI-25 is a 5V only device. The X28C256DI-25 features the JEDEC approved pinout for bytewide memories, compatible with industry standard RAMs. The X28C256DI-25 is designed and tested for applications requiring extended endurance. Inherent data retention is greater than 100 years.
Parametrics
X28C256DI-25 absolute maximum ratings: (1)Temperature under Bias: –10℃ to +85℃; (2)Storage Temperature: –65℃ to +150℃; (3)Voltage on any Pin with Respect to VSS: –1V to +7V; (4)D.C. Output Current: 5mA; (5)Lead Temperature (Soldering, 10 seconds): 300℃.
Features
X28C256DI-25 features: (1)Access Time: 200ns; (2)Simple Byte and Page Write; (3)Low Power CMOS: Active: 60mA; Standby: 200μA; (4)Software Data Protection; (5)High Speed Page Write Capability; (6)Highly Reliable Direct Write Cell; (7)Early End of Write Detection.
Diagrams
 |
 X28C010 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
X28C010DI-15 |
Intersil |
IC EEPROM 128KX8 5V CMOS 32-DIP |
Data Sheet |
Negotiable |
|
||||
|
X28C010RI-20 |
Intersil |
IC EEPROM 128KX8 5V CMOS 32-SOIC |
Data Sheet |
Negotiable |
|
||||
|
X28C256 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
X28C512 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
X28C512JIZ-12 |
|
IC EEPROM 512KBIT 120NS 32PLCC |
Data Sheet |
Negotiable |
|
||||
