Product Summary
The XC18V04VQ44I is an in-system programmable configuration PROM. It includes a 4-megabit, a 2-megabit, a 1-megabit, and a 512-kilobit PROM that provide an easy-to-use, cost-effective method for reprogramming and storing Xilinx FPGA configuration bitstreams.
Parametrics
XC18V04VQ44I absolute maximum ratings: (1)VCCINT/VCCO, Supply voltage relative to GND: –0.5 to +4.0 V; (2)VIN, Input voltage with respect to GND: –0.5 to +5.5 V; (3)VTS, Voltage applied to high-Z output: –0.5 to +5.5 V; (4)TSTG, Storage temperature (ambient): –65 to +150℃; (5)TJ, Junction temperature: +125℃.
Features
XC18V04VQ44I features: (1)In-System Programmable 3.3V PROMs for Configuration of Xilinx FPGAs; (2)Endurance of 20,000 Program/Erase Cycles; (3)Program/Erase Over Full Industrial Voltage and Temperature Range (–40 to +85℃); (4)IEEE Std 1149.1 Boundary-Scan (JTAG) Support; (5)JTAG Command Initiation of Standard FPGA Configuration; (6)Simple Interface to the FPGA; (7)Cascadable for Storing Longer or Multiple Bitstreams; (8)Low-Power Advanced CMOS FLASH Process; (9)Dual Configuration Modes; (10)Serial Slow/Fast Configuration (up to 33 MHz); (11)Parallel (up to 264 Mb/s at 33 MHz); (12)5V-Tolerant I/O Pins Accept 5V, 3.3V and 2.5V Signals; (13)3.3V or 2.5V Output Capability; (14)Design Support Using the Xilinx ISE Foundation Software Packages; (15)Available in PC20, SO20, PC44, and VQ44 Packages; (16)Lead-Free (Pb-Free) Packaging.

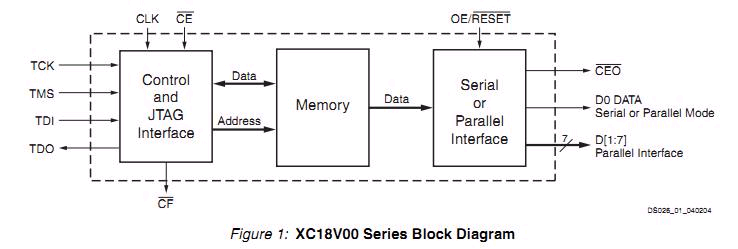

Diagrams
 |
