Product Summary

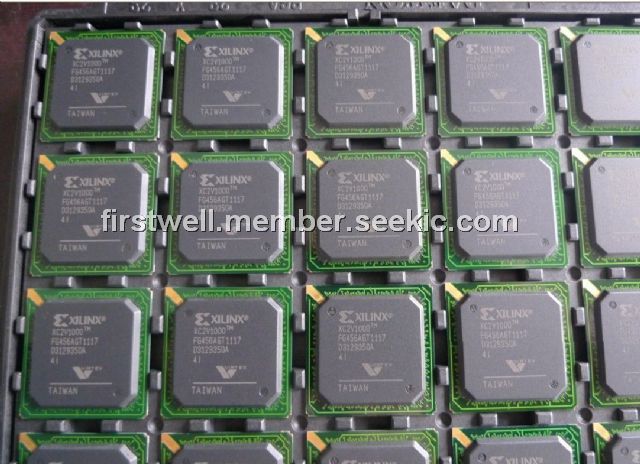

The XC2V1000-4FG456I is a Virtex-II 1.5V Field-Programmable Gate Array. It is a platform FPGA which is developed for high performance from low-density to high-density designs that are based on IP cores and customized modules.
Parametrics
XC2V1000-4FG456I absolute maximum ratings: (1)Internal supply voltage relative to GND: –0.5 to 1.65 V; (2)Auxiliary supply voltage relative to GND: –0.5 to 4.0 V; (3)Output drivers supply voltage relative to GND: –0.5 to 4.0 V; (4)Key memory battery backup supply: –0.5 to 4.0 V; (5)Input reference voltage: –0.5 to VCCO + 0.5 V; (6)Input voltage relative to GND (user and dedicated I/Os): –0.5 to VCCO + 0.5 V; (7)Voltage applied to 3-state output (user and dedicated I/Os): –0.5 to 4.0 V; (8)Maximum soldering temp.: +220 ℃; (9)Operating junction temperature (2): +125 ℃.
Features
XC2V1000-4FG456I features: (1)Industry First Platform FPGA Solution; (2)IP-Immersion Architecture: Densities from 40K to 8M system gates, 420 MHz internal clock speed (Advance Data), 840+ Mb/s I/O (Advance Data); (3)SelectRAM Memory Hierarchy: 3 Mb of True Dual-Port RAM in 18-Kbit block SelectRAM resources, Up to 1.5 Mb of distributed SelectRAM resources, High-performance interfaces to external memory.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XC2V1000-4FG456I |
|
IC FPGA VIRTEX-II 456FGBGA |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
XC2V1000 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
XC2V1000-4BG575I |
|
IC FPGA VIRTEX-II 575PBGA |
Data Sheet |
|
|
||||||
 |
XC2V1000-4BGG575C |
|
IC VIRTEX-II FPGA 1M 575-MBGA |
Data Sheet |
|
|
||||||
|
XC2V1000-4BGG575I |
|
IC FPGA VIRTEX-II 2M 575-MBGA |
Data Sheet |
|
|
||||||
|
XC2V1000-4FF896I |
|
IC FPGA VIRTEX-II 896FCBGA |
Data Sheet |
|
|
||||||
|
XC2V1000-4FFG896C |
|
IC VIRTEX-II FPGA 1M 896-FBGA |
Data Sheet |
|
|
||||||
