Product Summary

The XC4VFX60-10FFG1152I is a Field Programmable Gate Array. The innovative Advanced Silicon Modular Block or ASMBL column-based architecture is unique in the programmable logic industry. The XC4VFX60-10FFG1152I core includes the PowerPC processors (with a new APU interface), Tri-Mode Ethernet MACs, 622 Mb/s to 11.1 Gb/s serial transceivers, voltage/temperature system monitor blocks, dedicated DSP slices, high-speed clock management circuitry, and source-synchronous interface blocks. The XC4VFX60-10FFG1152I is produced on a state-of-the-art 90-nm copper process, using 300 mm (12 inch) wafer technology. Combining a wide variety of flexible features, the XC4VFX60-10FFG1152I enhances programmable logic design capabilities and is a powerful alternative to ASIC technology.

Parametrics

XC4VFX60-10FFG1152I absolute maximum ratings: (1)Number of I/O Pins: 448; (2)Number of Pins: 668; (3)RAM Memory Size: 165887 B; (4)Frequency: 400 MHz; (5)Supply Voltage (DC): 1.20 V; (6)Lead-Free Status: Lead Free; (7)Mounting Type: Surface Mount; (8)Packaging: Tray; (9)RoHS Compliant.

Features

XC4VFX60-10FFG1152I features: (1)Flexible Logic Resources; (2)Built-in System Monitor (voltage/temp. measurement); (3)10-bit, 200kSPS A/D Converter (ADC); (4)Secure Chip AES Bitstream Encryption; (5)90-nm copper CMOS process; (6)1.2V core voltage; (7)Flip-Chip Packaging; (8)RocketIO 622 Mb/s to 11.1 Gb/s Multi-Gigabit Transceivers (MGT) (FX only); (9)IBM PowerPC RISC Processor Core (FX only): PowerPC 405 (PPC405) Core; Auxiliary Processor Unit Interface (User Coprocessor); (10)Multiple Tri-Mode Ethernet MACs (FX only).

Diagrams

XC4VFX60-10FFG1152I block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

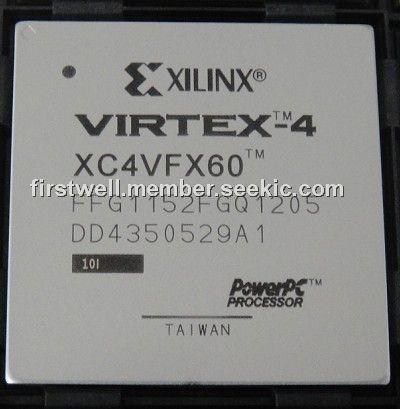

XC4VFX60-10FFG1152I
XC4VFX60-10FFG1152I


IC FPGA VIRTEX-4 FX 60K 1152FBGA

Data Sheet

0-1: $752.51
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
XC4VFX100-10FF1152I
XC4VFX100-10FF1152I


IC FPGA VIRTEX-4FX 1152FFBGA

Data Sheet

0-1: $1,732.46
XC4VFX100-10FF1517I
XC4VFX100-10FF1517I


IC FPGA VIRTEX-4FX 1517FFBGA

Data Sheet

0-1: $1,819.44
XC4VFX100-10FFG1152C
XC4VFX100-10FFG1152C


IC FPGA VIRTEX-4FX 100K 1152FBGA

Data Sheet

0-1: $1,386.13
XC4VFX100-10FFG1152I
XC4VFX100-10FFG1152I


IC FPGA VIRTEX-4FX 100K 1152FBGA

Data Sheet

0-1: $1,732.46
XC4VFX100-10FFG1517C
XC4VFX100-10FFG1517C


IC FPGA VIRTEX-4FX 100K 1517FBGA

Data Sheet

0-1: $1,455.55
XC4VFX100-10FFG1517I
XC4VFX100-10FFG1517I


IC FPGA VIRTEX-4FX 100K 1517FBGA

Data Sheet

0-1: $1,819.44
