Product Summary

The 30300500001 is a TR3, fast-acting type, 125V rated fuse designed in accordance to UL 248–14. The applications of the device include battery chargers, power supplies, consumer electronics and industrial controllers.

Parametrics

30300500001 absolute maximum ratings: (1)amperae rating: 0.05A; (2)VAC: 125V; (3)norminal cold resistance: 3.41Ohms; (4)interrupt rating: 50A@125VAC; (5)norminal voltage drop: 800mV; (6)norminal power dissipation: 40W; (7)operating temperature: -40 to 85℃.

Features

30300500001 features: (1)reduced PCB space requirements; (2)direct solderable or plug-in versions; (3)internationally approved; (4)low internal resistance; (5)shock safe casing; (6)vibration resistant; (7)Halogen free; (8)lead free; (9)available from 50mA to 5A.

Diagrams

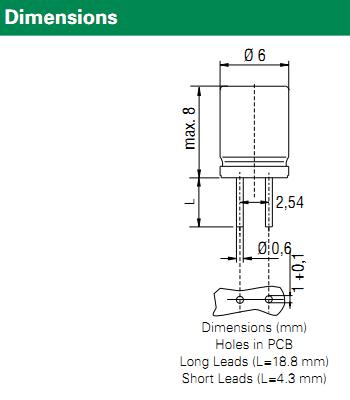

30300500001 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
30300500001
30300500001
Littelfuse
Fuses 125V FA SL .050A TR3
Data Sheet
0-725: $1.24
725-1000: $1.12
1000-2000: $1.03
2000-5000: $0.89
