Product Summary

The 3691100000 is a TE5, Time-lag type Fuse. It is 300V rated and is designed in accordance to IEC60127-3. The 3691100000 is suitalbe for electronic ballast.

Parametrics

3691100000 absolute maximum ratings: (1)ampera raint: 1A; (2)VAC: 300V; (3)norminal melting I2T: 5.8A2sec; (4)norminal cold resistance: 0.0715Ohms; (5)interrupt rating: 50A@300VAC.

Features

3691100000 features: (1)lead-free; (2)reduced PCB space requirements; (3)direct solderable or plug-in versions; (4)internationally approved; (5)low internal resistance; (6)shocksage casing; (7)vibration resistant; (8)Halogen free.

Diagrams

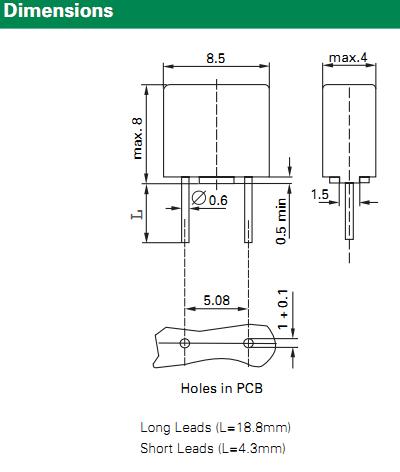

3691100000 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
36911000000
36911000000
Littelfuse
Fuses 300V TL TE5 LL 1A
Data Sheet
0-1: $0.19
1-25: $0.17
25-50: $0.17
50-100: $0.15
