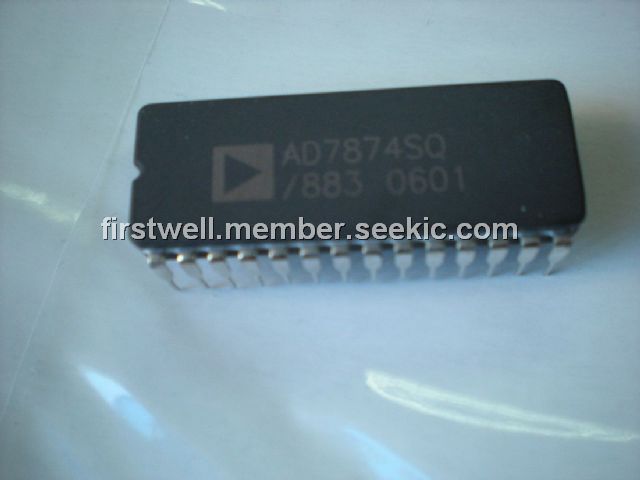

AD7874SQ

AD7874SQ, LC2MOS 4-Channel, 12-Bit Simultaneous Sampling Data Acquisition System, 28CDIP, 65 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $50.00~60.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $50.00~60.00

PartNumber:: AD7874SQ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. robert's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-02

From Other Seller

Part Number:AD7874SQ
US $50.00 - 60.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

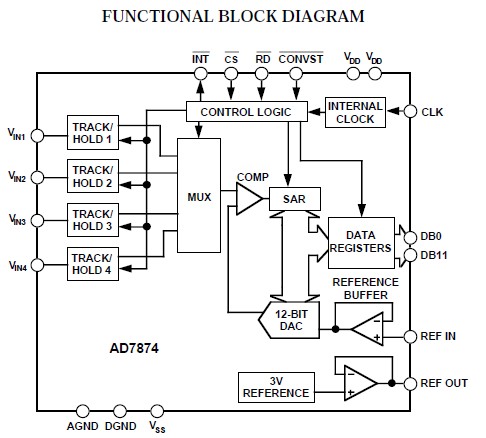

The AD7874SQ is a four-channel simultaneous sampling, 12-bit data acquisition system. The AD7874SQ contains a high speed 12-bit ADC, on-chip reference, on-chip clock and four track/hold amplifiers. This latter feature allows the four input channels to be sampled simultaneously, thus preserving the relative phase information of the four input channels, which is not possible if all four channels share a single track/hold amplifier. This makes the AD7874SQ ideal for applications such as phased-array sonar and ac motor controllers where the relative phase information is important. The AD7874SQ is ideal for: (1)Sonar; (2)Motor Controllers; (3)Adaptive Filters; (4)Digital Signal Processing.

Parametrics

AD7874SQ absolute maximum ratings: (1)VDD to AGND: –0.3 V to +7 V; (2)VDD to DGND: –0.3 V to +7 V; (3)VSS to AGND: +0.3 V to –7 V; (4)AGND to DGND: –0.3 V to VDD + 0.3 V; (5)VIN to AGND: –15 V to +15 V; (6)REF OUT to AGND: 0 V to VDD; (7)Digital Inputs to DGND: –0.3 V to VDD + 0.3 V; (8)Digital Outputs to DGND: –0.3 V to VDD + 0.3 V; (9)Operating Temperature Range: Commercial (A, B Versions): –40℃ to +85℃; Extended (S Version): –55℃ to +125℃; (10)Storage Temperature Range: –65℃ to +150℃; (11)Lead Temperature (Soldering, 10 secs): +300℃; (12)Power Dissipation (Any Package) to +75℃: 1,000 mW; (13)Derates above +75°C by: 10 mW/℃.

Features

AD7874SQ features: (1)Four On-Chip Track/Hold Amplifiers; (2)Simultaneous Sampling of 4 Channels; (3)Fast 12-Bit ADC with 8 ms Conversion Time/Channel; (4)29 kHz Sample Rate for All Four Channels; (5)On-Chip Reference; (6)610 V Input Range; (7)65 V Supplies.
