Product Summary
The CD10CD050DO3F is a Mica Capacitor. Stability and mica go hand-in-hand when you need to count on stable capacitance over a wide temperature range. The CD10CD050DO3F is the first choice for timing and close tolerance applications. The device is widely available through distribution.
Parametrics
CD10CD050DO3F absolute maximum ratings: (1)Capacitance Range: 1 pF to 91,000 pF; (2)Capacitance Tolerance: ±1/2 pF (D), ±1 pF (C), ±1/2% (E), ±1% (F), ±2% (G), ±5% (J); (3)Rated Voltage: 100 Vdc to 2500 Vdc; (4)Operating Temperature Range: –55 to +125℃; (5)Dielectric Strenght Test: 200% of rated voltage.
Features
CD10CD050DO3F features: (1)Reel packaging available; (2)High temperature – up to +150℃; (3)Dimensions meet EIA RS153B specification; (4)100,000 V/μs dV/dt pulse capability minimum; (5)Non-flammable units that meet IEC 695-2-2 are available.

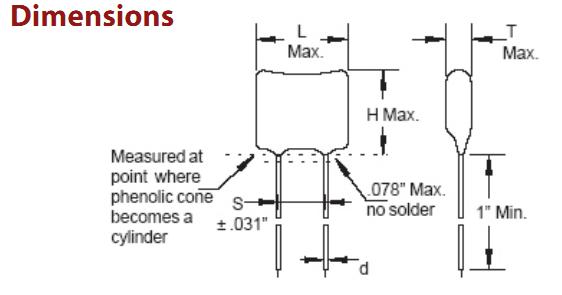

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD10CD050DO3F |
Cornell Dubilier |
Mica Capacitors 5pF 500V +/-0.5pF |
Data Sheet |
|
|
||||||||||||||
