MPC8541EPXAQF

MPC8541EPXAQF, PowerQUICC III Integrated Communications Processor, 1000MHZ, BGA-783

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~9.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~9.00

PartNumber:: MPC8541EPXAQF

Brand:: Freescale Semiconductor, Inc - Freescale | Pack: BGA | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. robert's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-21

From Other Seller

Part Number:MPC8541EPXAQF
US $1.00 - 9.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MPC8541EPXAQF PowerQUICC III Integrated Communications Processor integrates a PowerPC processor core built on Power Architecture technology with system logic required for networking, telecommunications, and wireless infrastructure applications. The MPC8541EPXAQF is a member of the PowerQUICC III family of devices that combine system level support for industry-standard interfaces with processors that implement the embedded category of the Power Architecture technology.

Parametrics

MPC8541EPXAQF absolute maximum ratings: (1)Core supply voltage, VDD –0.3 to 1.32 V; 0.3 to 1.43 (for 1 GHz only) V; (2)PLL supply voltage, AVDD –0.3 to 1.32 V; 0.3 to 1.43 (for 1 GHz only) V; (3)DDR DRAM I/O voltage, GVDD: –0.3 to 3.63 V; (4)Three-speed Ethernet I/O, MII management voltage, LVDD: –0.3 to 3.63 V; –0.3 to 2.75 V ; (5)CPM, PCI, local bus, DUART, system control and power management, I2C, and JTAG I/O voltage, OVDD –0.3 to 3.63 V; (6)Storage temperature range, TSTG: –55 to 150℃.

Features

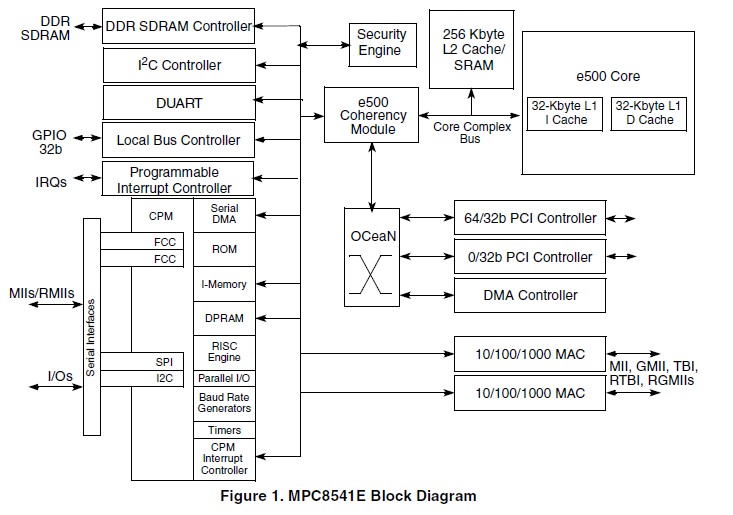

MPC8541EPXAQF features: (1)Embedded e500 Book E-compatible core; (2)High-performance RISC CPM; (3)256 Kbytes of on-chip memory; (4)Address translation and mapping unit (ATMU); (5)DDR memory controller; (6)Programmable interrupt controller (PIC); (7)Two I2C controllers (one is contained within the CPM, the other is a stand-alone controller which is not part of the CPM); (8)Boot sequencer; (9)DUART; (10)Local bus controller (LBC); (11)Two Three-speed (10/100/1000)Ethernet controllers (TSECs); (12)OCeaN switch fabric; (13)Integrated DMA controller; (14)PCI Controllers; (15)System performance monitor; (16)IEEE Std 1149.1 compatible, JTAG boundary scan; (17)783 FC-PBGA package.
