Product Summary

The 715P15452LD3 is a capacitor. It is ideal for applications where high AC current flow is found, as in certain solid-state TV vertical circuits, r-f generators and pulse-forming networks where dielectric heating is often a problem.

Parametrics

715P15452LD3 absolute maximum ratings: (1)Number of Pins: 2; (2)Capacitance: 150 nF; (3)Insulation Resistance: 400 GΩ; (4)Lead Length: 31.8 mm; (5)Size-Length: 33.0 mm; (6)Voltage Rating (DC): 200 V.

Features

715P15452LD3 features: (1)Dielectric Material: Polypropylene; (2)Mounting Type: Through Hole; (3)Packaging: Cut Tape (CT), Tape & Reel (TR); (4)RoHS: Compliant; (5)Termination Style: Axial Leaded.

Diagrams

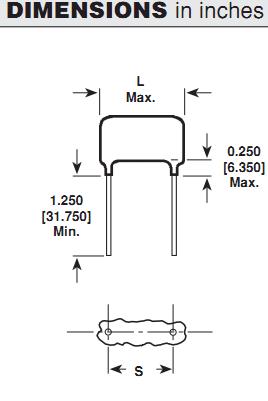

715P15452LD3 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
715P15452LD3
715P15452LD3
Vishay/Sprague
Film Capacitors 200volts .15uF 5% ORANGE DROP
Data Sheet
0-1: $2.01
1-25: $1.70
25-100: $1.39
100-250: $1.24
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
715P102516LD3
715P102516LD3
Vishay/Sprague
Film Capacitors 1600volts .001uF 5% ORANGE DROP
Data Sheet
0-1: $1.45
1-25: $1.22
25-100: $1.00
100-250: $0.89
715P10256JD3
715P10256JD3
Vishay/Sprague
Film Capacitors 600volts .001uF 5% ORANGE DROP
Data Sheet
0-1: $1.25
1-25: $1.06
25-100: $0.86
100-250: $0.77
715P103516LD3
715P103516LD3
Vishay/Sprague
Film Capacitors 1600volts .01uF 5% ORANGE DROP
Data Sheet
0-1: $2.67
1-25: $2.26
25-100: $1.85
100-250: $1.64
715P10352JD3
715P10352JD3
Vishay/Sprague
Film Capacitors 200volts .01uF 5% ORANGE DROP
Data Sheet
0-1: $0.70
1-25: $0.68
25-100: $0.66
100-250: $0.64
715P10358LD3
715P10358LD3
Vishay/Sprague
Film Capacitors 800volts .01uF 5% ORANGE DROP
Data Sheet
0-1: $1.56
1-25: $1.32
25-100: $1.08
100-250: $0.96
715P10454LD3
715P10454LD3
Vishay/Sprague
Film Capacitors 400volts .1uF 5% ORANGE DROP
Data Sheet
0-1: $2.17
1-25: $1.83
25-100: $1.50
100-250: $1.33
